# How to render a Material 3 bottom tab bar with NativeTabs in Expo Router

> Expo Router's submodule NativeTabs renders a real Material 3 navigation bar on Android and its native counterpart on iOS from one component tree.

Published: 2026-09-06
Tags: react-native, expo

---

Expo Router's submodule `NativeTabs` renders a real Material 3 navigation bar on Android and its native counterpart on iOS from one component tree.

On Android, the active indicator pill and touch ripple come from the platform itself, so you do not need to animate them.

The following approach is tested with Expo SDK 56 with a development build. You can create your own example app using `bunx create-expo-app`. Also remember, the minimum SDK version supported by `NativeTabs` is SDK 54.

## One import

To import the `NativeTabs` API, all you need is to add the following where you add your native tabs code. In Expo's default template, that is `src/components/app-tabs.tsx` file.

```tsx
import { NativeTabs } from 'expo-router/unstable-native-tabs';
```

## Tabs are a route group in Expo Router

Expo Router follows file-based navigation system to allow you to add and/or remove new routes from the app. These routes are defined inside `src/app/(tabs)/` directory.

The navigation bar itself lives inside `src/components/app-tabs.tsx` where a component `AppTabs` is exported and imported inside `src/app/_layout.tsx`, which is the root layout file of the Expo project.

The following example has four tabs:

```tsx
import { NativeTabs } from 'expo-router/unstable-native-tabs';

export default function AppTabs() {
  return (
    <NativeTabs>
      <NativeTabs.Trigger name="index">
        <NativeTabs.Trigger.Label>Today</NativeTabs.Trigger.Label>
      </NativeTabs.Trigger>

      <NativeTabs.Trigger name="activity">
        <NativeTabs.Trigger.Label>Activity</NativeTabs.Trigger.Label>
      </NativeTabs.Trigger>

      <NativeTabs.Trigger name="search">
        <NativeTabs.Trigger.Label>Search</NativeTabs.Trigger.Label>
      </NativeTabs.Trigger>

      <NativeTabs.Trigger name="settings">
        <NativeTabs.Trigger.Label>Settings</NativeTabs.Trigger.Label>
      </NativeTabs.Trigger>
    </NativeTabs>
  );
}
```

In the above snippet, note that the `name` prop points to a route file and it should exist inside `(tabs)/`. For example, `name="index"` is `(tabs)/index.tsx`. The `Label` prop is the text under the icon in the navigation bar.

## What you get before you style anything

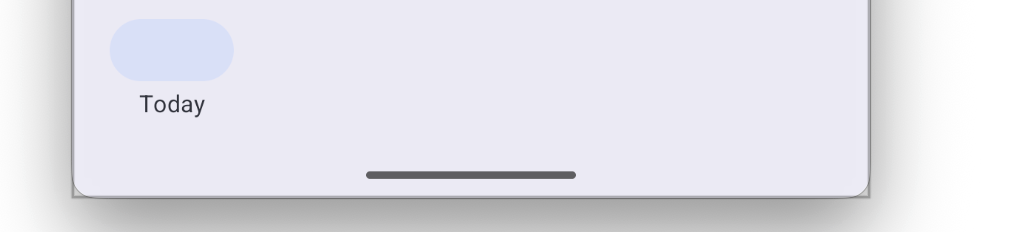

When you run the above example on an Android Emulator or device, you already get the navigation bar in Material 3:

<img src="/images/material-3-tab-bar-in-expo-router/01.png" alt="Android Material 3 navigation bar with the Today destination active, showing the default lavender-gray surface and blue-gray indicator pill with no icon" width="540" />

Notice that the default colors uses by the Material 3 bar are lavender-gray for the surface and blue-gray for the pill behind the active destination.

In the previous code snippet, you haven't added any styling prop. This causest the gap here that tabs have no icons because Android and iOS read from different icon sets.
